Stump Grinder - Track, Self Propelled WB

Manufacturer Link: <Click Here>


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Manufacturer: Barreto

Model: SG30

Daily: $300.00

Weekly: $1,100.00

Monthly: $2,800.00

Quantity: for a period of
day(s) week(s) month(s)

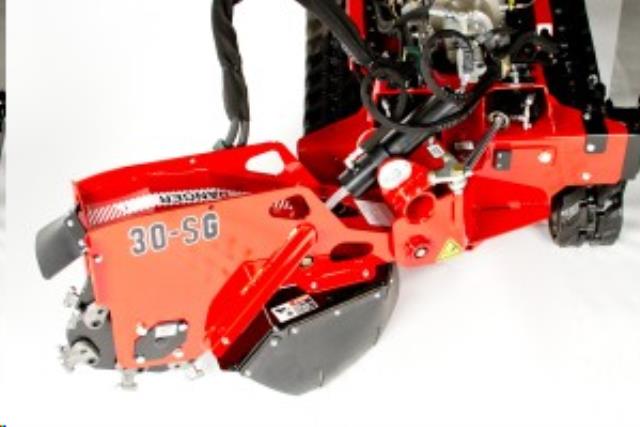

The 30SG has a hydraulically-driven cutter wheel that is raised and lowered into the stump and then moved from side to side to cut down. The 30SG is powered by a 31hp Briggs & Stratton Vanguard V-Twin engine. The engine is coupled to two gear pumps: the larger gear pump drives the cutter wheel and the smaller pump works the tilt and swing cylinders. The tracks are driven by independent hydrostatic pumps mounted on the rear of the engine for easy access and simple linkage control. Counterbalance valves on each track drive prevent the track motors from slipping while the cutter wheel is engaged in the cutting process, even while operating on a slope.
CONTROLS
The cutter wheel operation and articulating arm are operated by controls mounted on the console. The cutter wheel is activated by a switch on the control stick and has a secondary safety switch to prevent accidental engagement. Back and forth movement across the stump, as well as depth of cut, are easily controlled by handles on the console, allowing for carefully controlled movement of the cutter wheel as it reduces the stump to chips.
DIMENSIONS
Weight: 1700 lb.
Height: 49.5
Length (head to side): 79
Length (head straight): 98
Width: 35.5
WHEEL SPECIFICATIONS
Cutting Wheel: 19.2 diameter to tooth
Cutting Teeth: 0.750 thick, 16 green teeth
Cutting Depth: 12
Cutting Height: 32
Head Swing: 134 , 99.7 arc
TRACK SYSTEM
Track Width: 180MM (7.1 )
Total Ground Contact: 472 sq. in.
